Various functions are added to aluminum parts|Coatings for electrodeposition coatings

TOYOCHEM electrodeposition paints are electrodeposition paints designed to "give function" to aluminum materials rather than just applying a coating.
Compared to anodized aluminum and general coatings, it has a clear advantage in aluminum applications where functions such as insulation, processing following, and durability are required, and it is recommended for those who are considering surface treatment for functional parts.

• High metal adhesion
• Stable insulation performance
• Post-painting processing is also possible
• High corrosion and chemical resistance
• FAQ
• Product Summary
• Document DL / Inquiries

High metal adhesion to aluminum materials

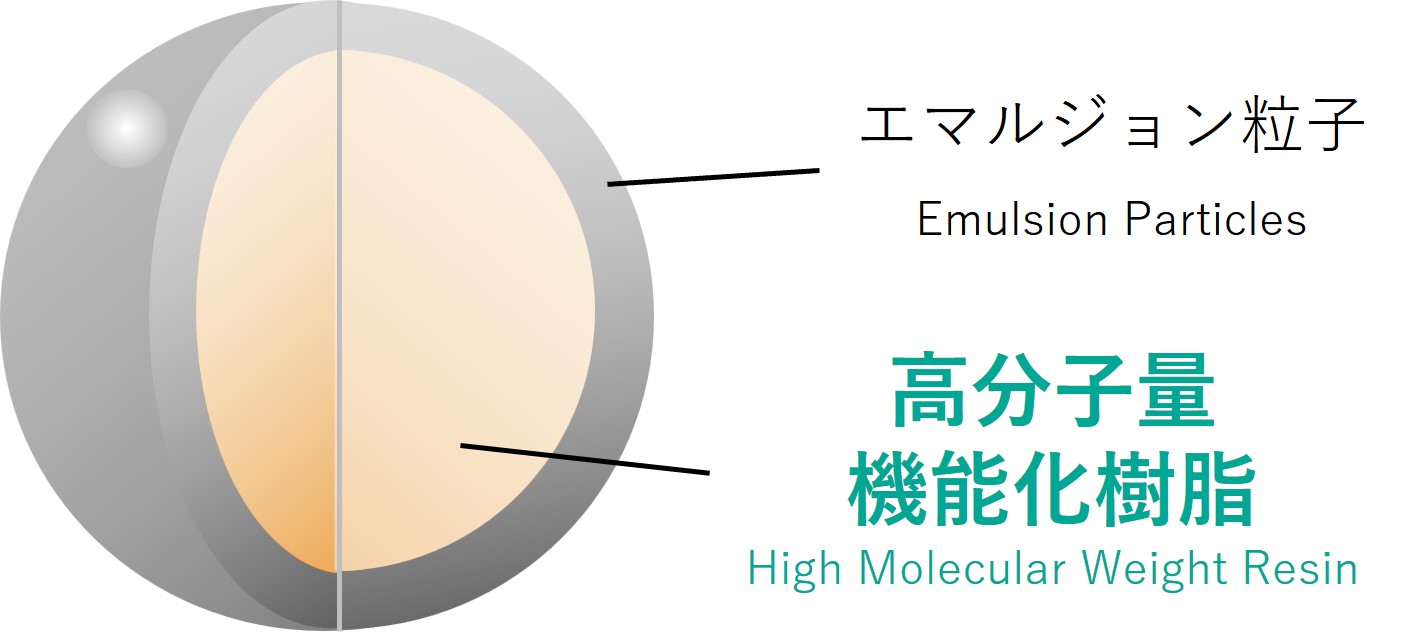

TOYOCHEM 's electrodeposition coatings exhibit stable metal adhesion to aluminum substrates due to their high molecular weight and functionalized resin design. It is resistant to peeling even after cold and thermal shock and environmental impact tests, ensuring high reliability in electrodeposition coating on aluminum materials.

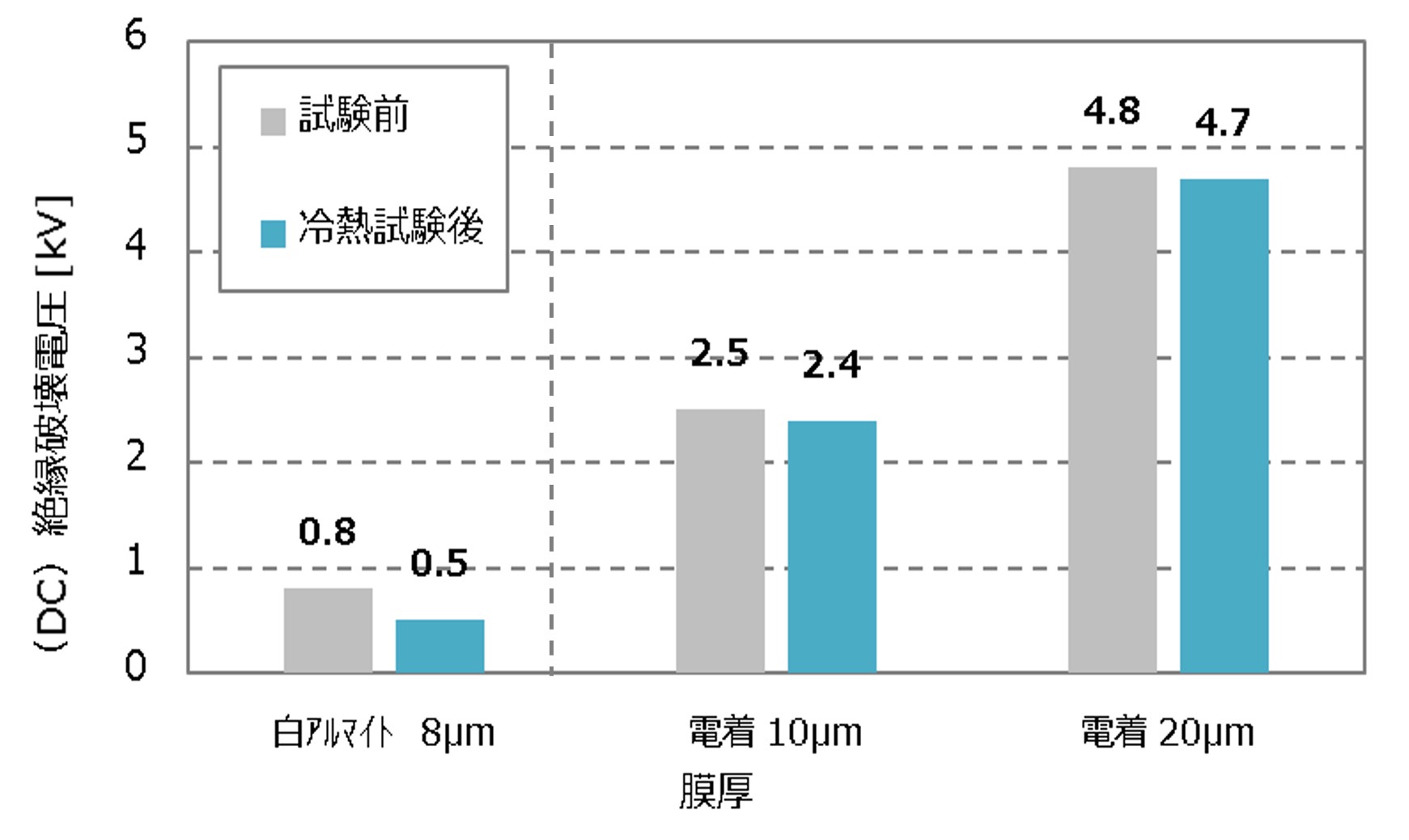

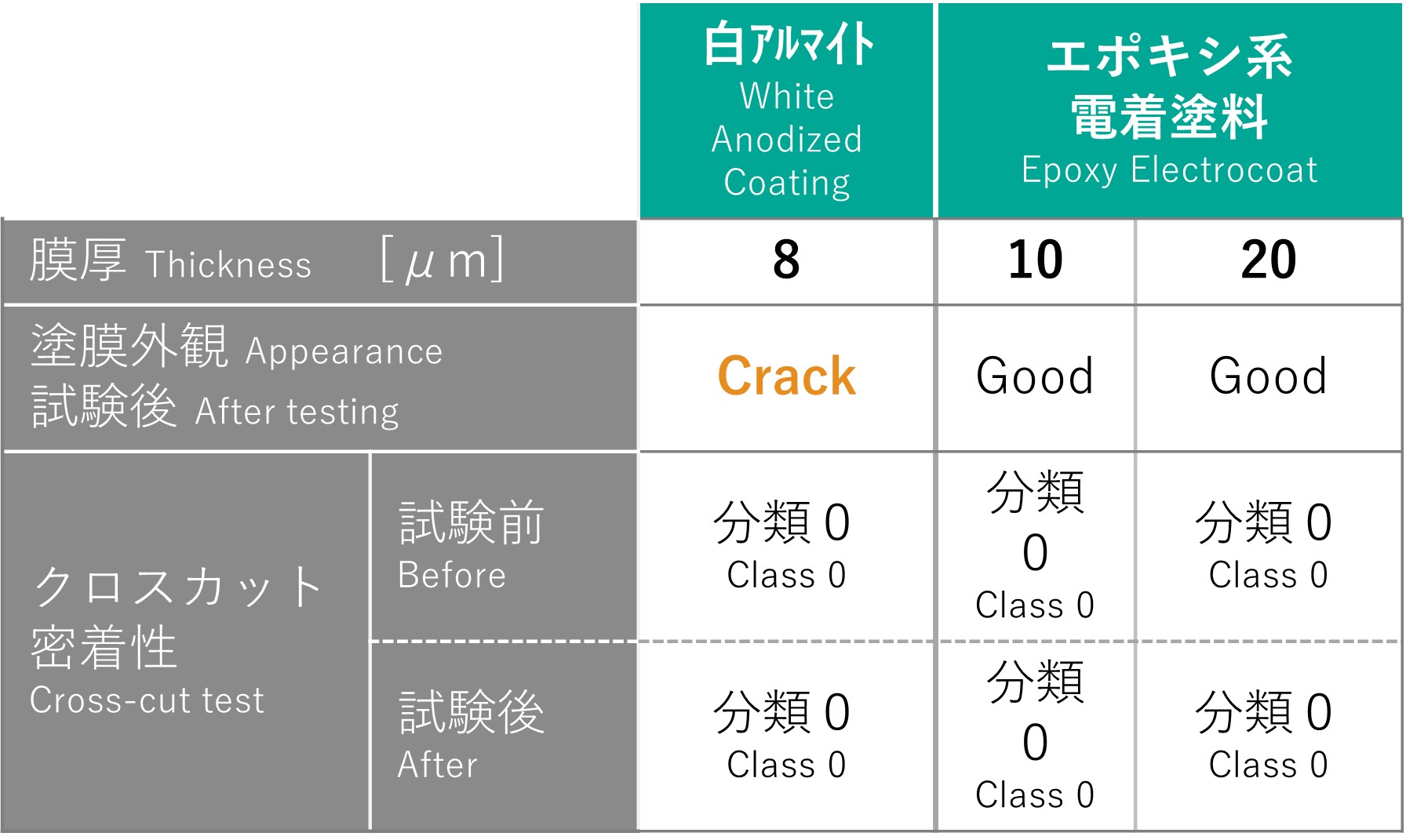

Test conditions
Measurement sample: A1050 painted panel (flat plate), test temperature: -40°C on the low temperature side, 180°C on the high temperature side, exposure time: 15 minutes each on the high and low temperatures, number of cycles: 500 times, physical property evaluation items: coating appearance (visual), cross-cut adhesion (JIS K 5600-5-6), dielectric breakdown voltage (DC voltage), 25°C 50%RH under air

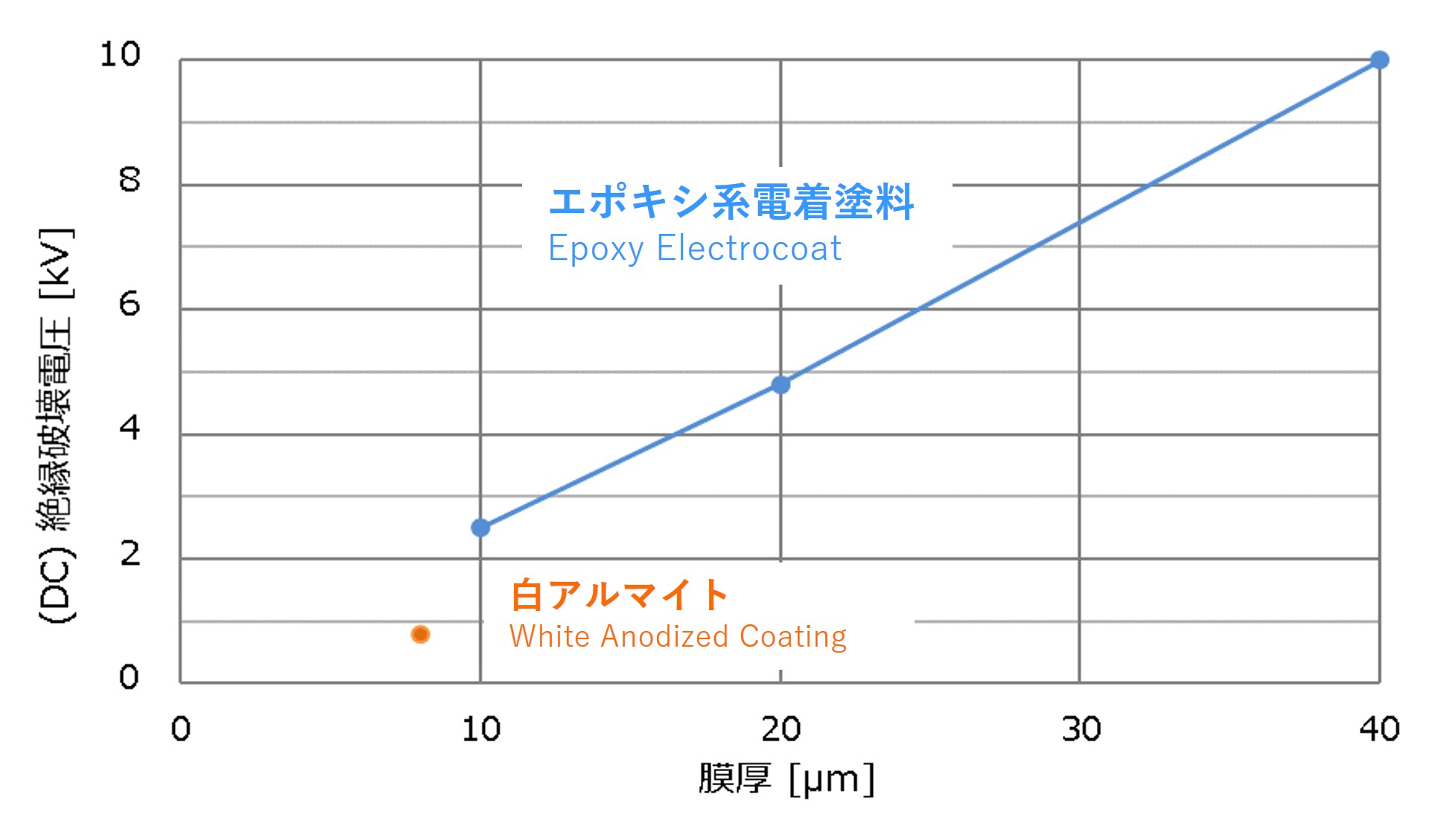

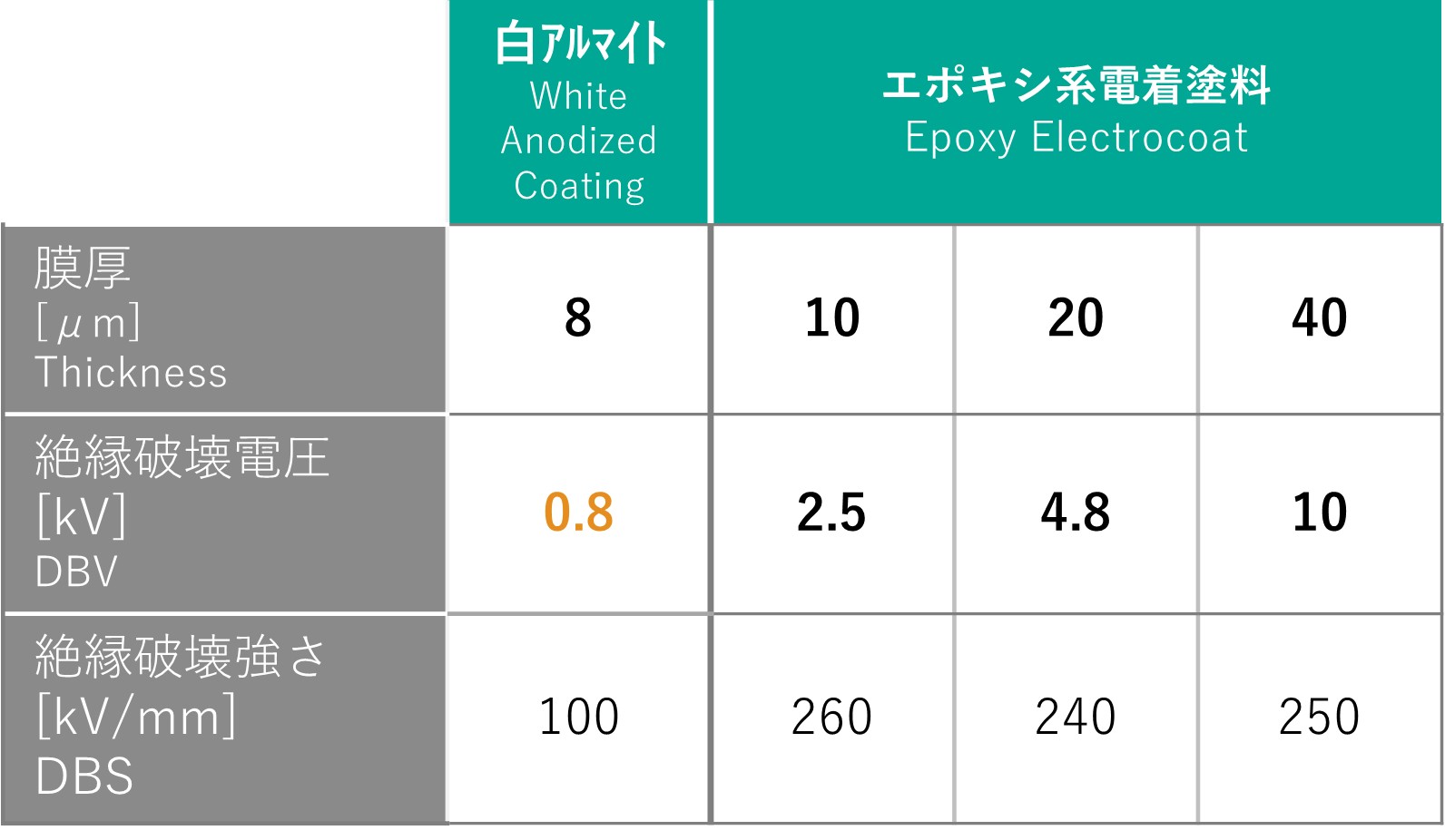

Stable insulation performance due to high film thickness design

This product takes advantage of the uniform film thickness formability unique to electrodeposition coating, and the insulation performance can be controlled by the film thickness design. Even in aluminum substrates, the breakdown voltage increases stably with the increase in film thickness, so it is possible to design backwards from the required voltage. These coatings are suitable for applications where insulation reliability is required.

Test conditions

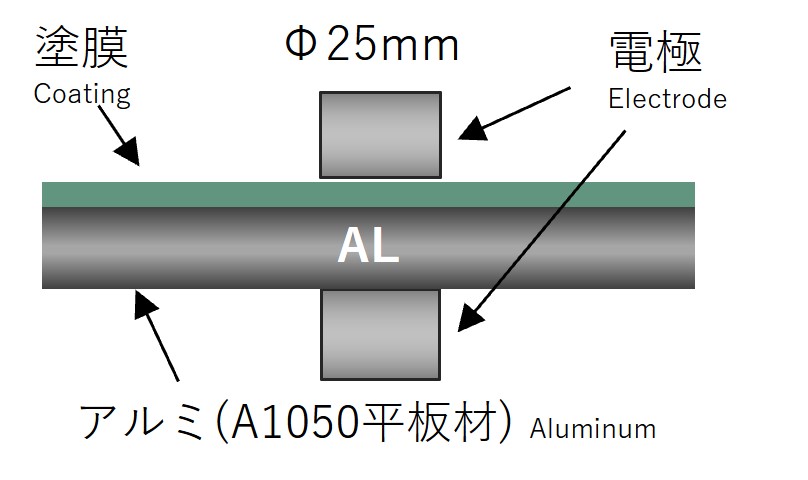

Measurement sample: A1050 painted panel (flat plate)
Applied Voltage: DC (Direct Current)
Test Environment: 25°C 50%RH under air
Boost speed: 0.1kV/sec.
Maximum Voltage: 10kV

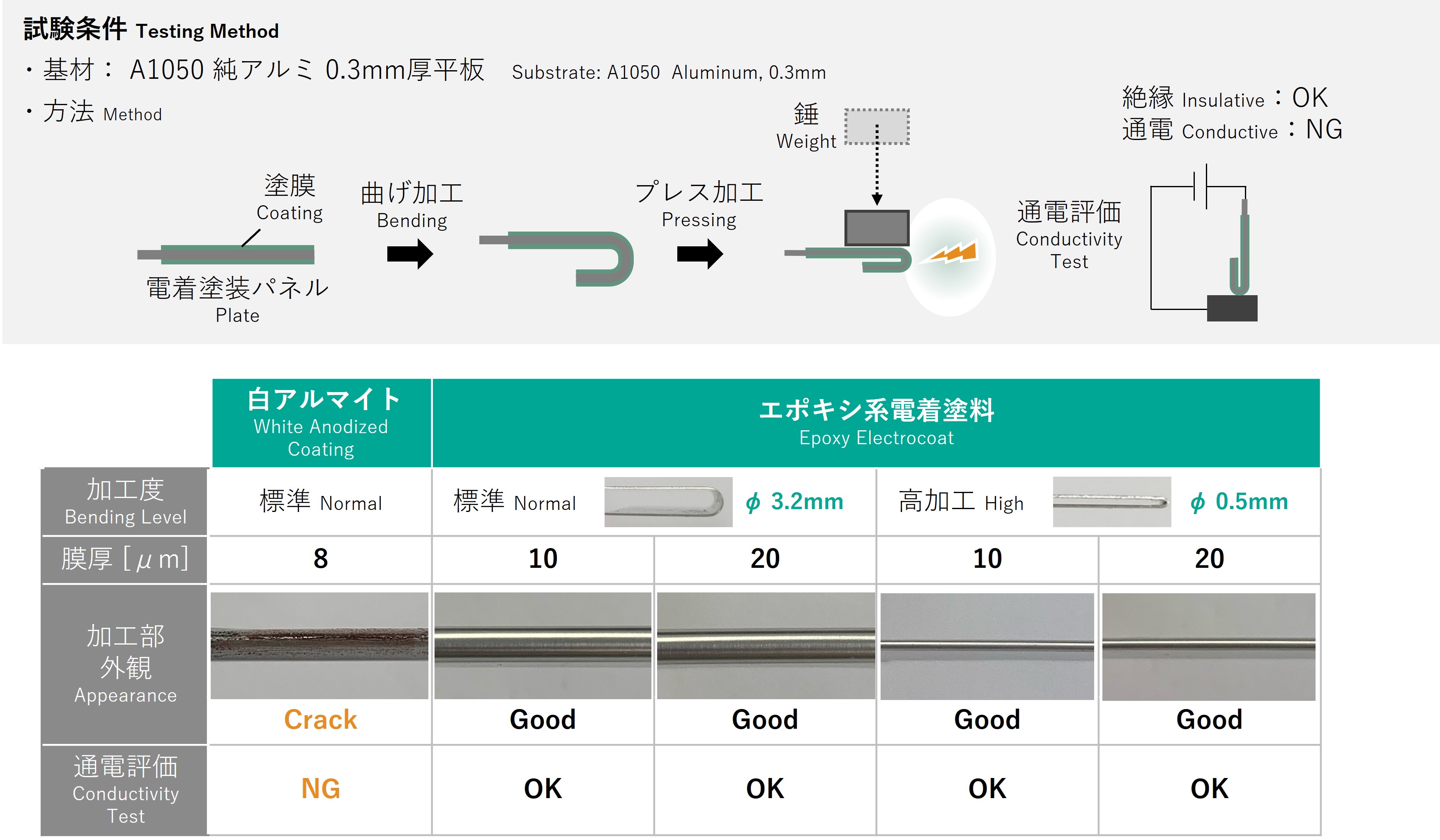

Process tracking to withstand post-painting processing

In general, electrodeposition coatings are hard and tend to crack easily during post-painting processing, but this product has high processing follow-up. It is difficult to crack the coating film or apply electricity even during bending and stamping after painting, and it is possible to design the process based on the premise of post-coating processing. It contributes to improving process freedom and reducing defects.

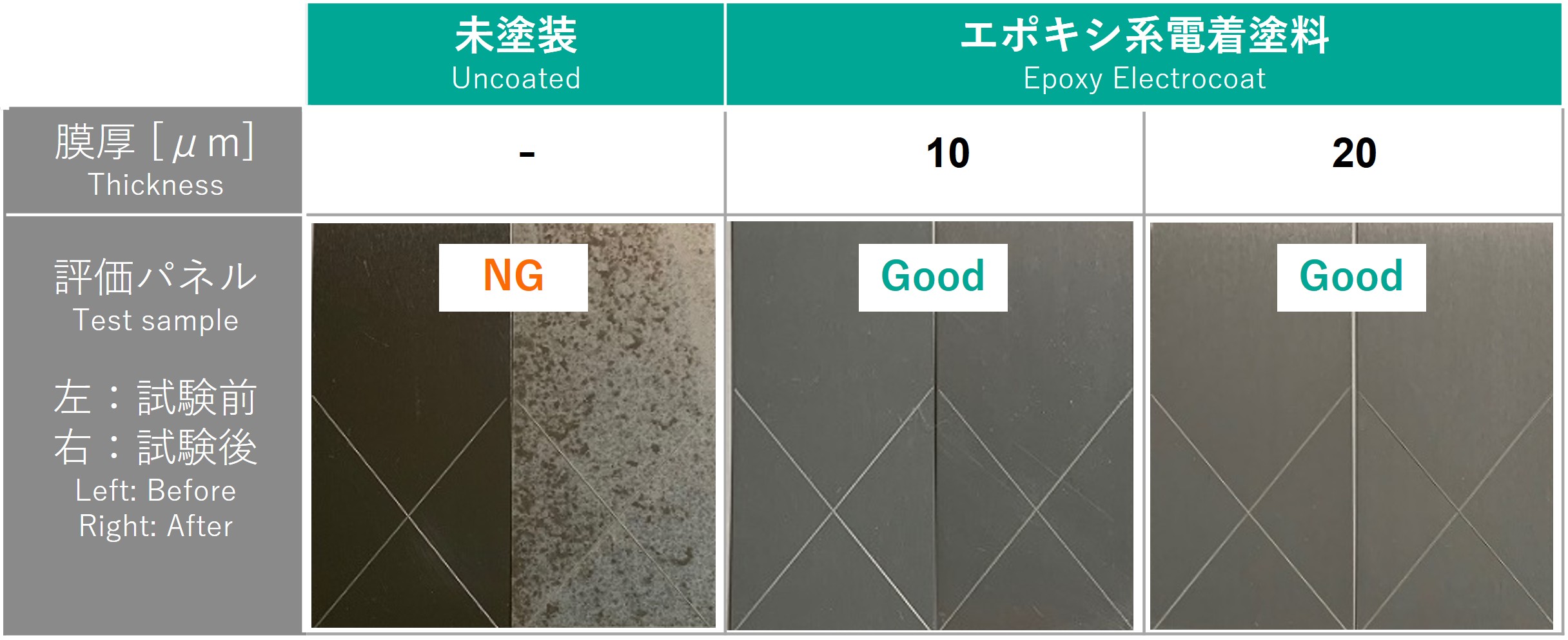

Corrosion and chemical resistance equal to or greater than that of white anodized aluminum

This product exhibits excellent corrosion, chemical, and water-based resistance to aluminum substrates. It is resistant to coating deterioration even in acid, humid heat, and water environments, and has high durability. It is a valid alternative to anodized aluminum in applications where functionality is important.

Test conditions
Coating substrate: A1050 pure aluminum material (0.3mm thick flat plate), measuring sample: cross-cut treatment on the painted panel, number of cycles: 125 times (about 1000 hours), reference standard: JASO M609 / M610
(1) Salt spray (35°C, 5% NaCl) ×2 hours→ (2) Drying (60°C, 30%RH) ×4 hours→ (3) Wet (50°C, 95%RH) ×2 hours

"Frequently Asked Questions" about electrodeposition paints for aluminum

Product Summary

TOYOCHEM 's Anion Electrodeposition Coating is a water-based epoxy-based electrodeposition coating based on its unique polymer design technology, and is characterized by its high adhesion to various metals such as aluminum and steel, excellent corrosion resistance, processing following, and insulation, and can form uniform film thickness even for complex shapes and dissimilar metals. It is a high-performance paint that can be applied to new fields such as mobility, electronics, and living spaces by applying conventional coating technology for food and industrial containers.
