Optically controlled black ink product lineup
This website uses automated machine translation. Please note that translations may not be fully accurate and may differ from the original Japanese text.
We introduce three types of black inks that excel in optical control.
We offer a lineup of low-reflectance black inks achieving reflectivity below 1%, infrared transmission black inks that combine high blocking in the visible light range and high transmittance in the near-infrared range, and light-blocking black inks that achieve high light-blocking performance in thin films.
For product inquiries, click here
We offer a lineup of low-reflectance black inks achieving reflectivity below 1%, infrared transmission black inks that combine high blocking in the visible light range and high transmittance in the near-infrared range, and light-blocking black inks that achieve high light-blocking performance in thin films.
Low-Reflection Black Ink SS MATT911
This black ink achieves a reflectivity of less than 1%.
Enables more precise control of ghost flare.
By blocking light from the lens and suppressing stray light, it contributes to improving image quality.
Enables more precise control of ghost flare.
By blocking light from the lens and suppressing stray light, it contributes to improving image quality.
Applications
- Camera Module
- Optical sensor peripheral components
- Absorption of External Light
Features
- Balancing light-blocking and anti-stray light
- Compatible with various printing methods
- Excellent substrate adhesion, solvent resistance, and alkali resistance
| Item | Evaluation results | Measurement condition | |
|---|---|---|---|
| Light blocking property | OD3 or higher | 380nm~780nm Calculated from average transmittance, film thickness 10μ or more | |
| reflectance | Below 0.2% | 380nm~780nm Average reflectance Angle of incidence 0° | |
| Adhesion | white-plated glass | 5B | Cross-Cut Test (ASTM Standard) |
| To SS | 5B | ||
| PI Film | 5B | ||
| COC * COVID-19 Measures |
5B | ||
| Solvents | MEK | ◯ | Rub the glass coating with a cotton swab containing solvent to check the appearance |
| EtOH | ◯ | ||
| Alkali Resistance | ◯ | Immersing the coating film on glass with pH 13 alkaline water → Appearance and adhesion confirmed after 5 minutes of ultrasound irradiation |
|
Infrared Transmission Black Ink SV SSIPBLACK
This black ink combines high shielding in the visible light range and high transmittance in the near-infrared range.
By varying ink thickness and concentration, flexible optical control is possible according to your application, enabling high-precision wavelength control in the near-infrared region of infrared cameras and sensors.
By varying ink thickness and concentration, flexible optical control is possible according to your application, enabling high-precision wavelength control in the near-infrared region of infrared cameras and sensors.
Applications
- Blindfolding sensors such as LiDAR
- Infrared camera blindfold
Features
- High Transmittance in the Near-Infrared Region
- High shielding and excellent weather resistance in the visible light range
| Eligible Products | OD value | Total light transmittance | |
|---|---|---|---|
| 905nm | 1550nm | ||
| Green (OD Value Adjustment Product 1) | 1.43 | 98.0% | 98.3% |
| Orange (OD Value Adjustment Product 2) | 2.34 | 97.7% | 97.9% |
| Yellow (OD Value Adjustment Product 3) | 3.26 | 95.6% | 96.0% |

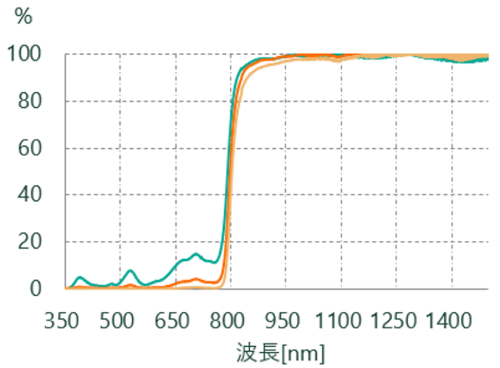

We evaluate three patterns with different OD values due to differences in film thickness caused by mesh differences during screen printing.
Total light transmittance
| Evaluation details | Test condition | Adhesion | OD value | 905nm transmittance rate |
reflective color | ||
|---|---|---|---|---|---|---|---|
| L | a | b | |||||
| STD | - | 5B | 2.55 | 96.1% | 1.8 | -0.5 | 0.3 |
| Humid heat resistance | 85°C/85% RH 1000 hours | 5B | 2.57 | 95.6% | 2.3 | -0.5 | 0.3 |
| Heat resistance | 125°C for 2000 hours | 5B | 2.59 | 94.1% | 2.3 | -0.4 | 0.5 |
| durability | -40℃～125℃ 30 minutes of holding, 1000 cycles |
5B | 2.6 | 96.2% | 2.6 | -0.6 | 0 |
Printing conditions were the same: printing on D263 Glass. Drying conditions were 80°C for 30 minutes.
High Light-Blocking Black Ink SV SSLS Series
This black ink achieves high light-blocking performance with a thin film.
Helps suppress internal reflections and stray light inside prism lenses.
Helps suppress internal reflections and stray light inside prism lenses.
Applications
- prism
- Camera lens, shading ring
- Display bezel, black mask
Features

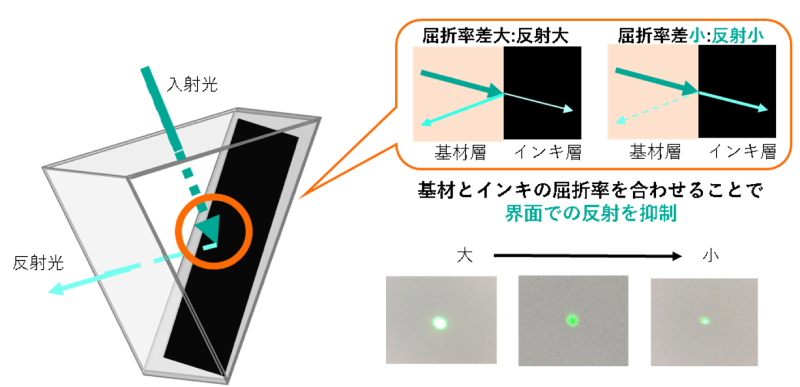

- Suppression of Internal Stray Light Inside Prism Lenses
- Ink refractive index can be customized according to the substrate
- Achieving high light-blocking performance with thin film
Physical properties by product
We offer a lineup of multiple light-blocking inks tailored to the refractive index of the substrate.
| Product name | LSA | LSB | LSC |
|---|---|---|---|
| resin refractive index | 1.55 | 1.50 | 1.60 |
| Film thickness | 10μm | 10μm | 10μm |
| OD value | > 4.5 | > 4.5 | > 4.5 |
Inquiries
TOYO INK CO., LTD. Marketing Headquarters
TEL:+81-3-3272-0919
