High molding laminating adhesives TM-K55
This website uses automated machine translation. Please note that translations may not be fully accurate and may differ from the original Japanese text.
Using our resin design technology, we have achieved a high level of both moldability and durability. It exhibits high adhesive strength even after stretching, and can also be bonded to PET substrates. We have a track record in LiB battery peripheral materials and PTP packaging materials.
Features
- High adhesion even after stretching
- Strong adhesion to PET
- Good heat resistance and durability
Application example

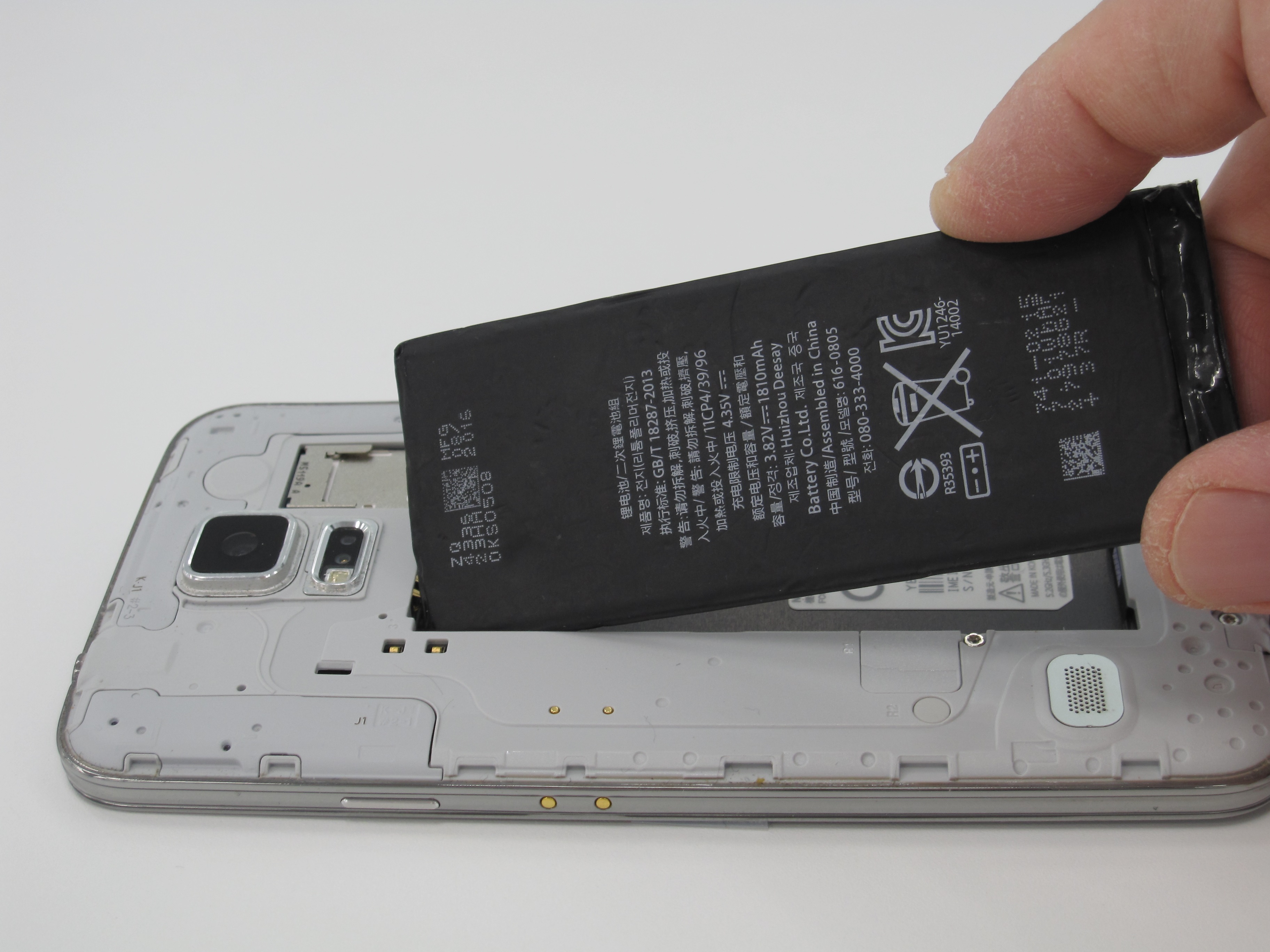

lithium ion battery package
Product Data
| Product name | Main agent | hardening agent |
|---|---|---|
| TM-K55 | CAT-10 | |
| Resin composition | polyester resin | Aromatic NCO |
| Non-volatile content | 30％ | 75％ |
| Viscosity | 150mPa・s | 1750mPa･s |
| Mixing ratio | 100 | 8～14 |
| Aging conditions | 60℃ or more/7 days or more | |
| Normal strength* | 7.1N/15mm | |
*Layer composition: NY/AL
*Peeling speed: 100mm/min
*Peeling angle: T type
* The above figures are measurements and not guarantees.
Configuration example

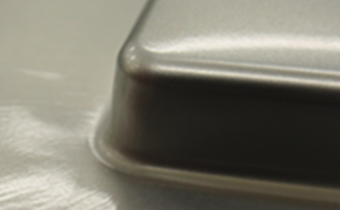

Applicable to the outer layer of lithium-ion battery pouches. It has high moldability and durability.
Inquiries
Toyo-Morton, Ltd.
TEL:+81-3-3272-3394
