| Dry curing method |
UV curing type |
| Packing |
15kg |
| Purpose/Function |
packages, books |
| Base material |
paper, synthetic paper |
| Printability |
Coating property |
| Post-processability |
Recoatability |
| Paint film appearance |
gloss, transparency |
| Paint film properties |
Abrasion resistance |
| Resistance |
Heat resistance, hot water-based resistance, weather resistance |
| Paint film strength |
Tough coating, high hardness |
| Chemical Resistance |
Acid resistance, alkali resistance, alcohol resistance, solvent resistance |
| Characteristics (other) |
- Excellent abrasion resistance due to unprecedented varnish film strength
- Effective in suppressing fingerprint adhesion
- High gloss, high transparency
- Possesses excellent suitability for post-processing. Can also be used for pseudo embossing
|
| Finish, texture, appearance effect |
Gloss (glossy) |
| Heat dry curing conditions |
160W/cm high pressure mercury lamp 1 light 80m/min (total light intensity 130mJ/cm2) |
| How to use ink & precautions |
- Please stir the product well before use.
- The coating performance of this product changes depending on the environment and conditions during printing.
(Example: The thicker the coating film or the higher the integrated light intensity, the better the abrasion resistance will be, but on the other hand, crease cracks will tend to occur more easily.)
- Before using the product, please be sure to check the required physical properties of the prints produced by this machine, such as abrasion resistance, adhesion, blocking properties, slipperiness, line breakability, and post-processability.
- Mixing with other varnishes may impair its original performance. Please be careful not to contaminate other varnishes.
- 他のニスや洗浄剤とのコンタミで白濁化や異物を発生することが御座います。洗浄剤としては、IPA：等のアルコール、弊社洗剤「FDDC洗剤ＥＸ」を推奨致します。
- Varnish may react and harden even in indoor light. Please protect tanks and piping from light, and store in a cool, dark place.
|
| Physical properties |
供試ワニス：REXWIN コートニス HC
塗工条件：バーコーター#2（膜厚 約3.0μm）
硬化条件：160W/cm 高圧水銀ランプ1灯 80m/分（積算光量 130mJ/cm2）
| Item |
Test results |
Test method |
| gloss value |
75～85 |
インキおよび白紙上60度光沢値 |
| Friction resistance |
Good |
学振型摩擦試験機
スチールウール#0000荷重200g 30回 |
| sliding angle |
20～30度 |
Slip tester Printed surface x printed surface |
| yellowing |
Good |
Contains no optical brighteners |
| Blocking resistance |
Good |
荷重500g/cm2（49kPa）、
温度40℃湿度80%にて24時間、印刷面×印刷面 |
| Foil/glue suitability |
Good |
(Pre-check required) |
|
| Other product data |

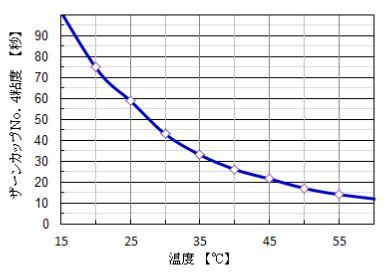

粘度：ザーンカップNo.4/59秒±3秒（25℃）、26秒±5秒（40℃）
|
| Requests for use |
- This document is an example of our test data, and the properties obtained will vary depending on printing/processing conditions, base materials, etc., and are not guaranteed.
Before using the product, please carefully check its intended use.
- Before handling this product, be sure to read the "Product Safety Data Sheet" and handle with care.
- If you wish to export this product overseas, please be sure to check with us.
|
